18 Inch pp Horizontal Slurry Pump For Tailings Management

Short Description:

Brand: CNSME

Model Number: 3/2AH

Model Number: CE/ISO

Place of Origin: Hebei,China

Minimum Order Quantity: 1set

Delivery Time: 7-10 days

Payment Terms: T/T, Western Union

Supply Ability: 30 Sets per Month

Packaging Details: Plywood Crate

Send email to us Download as PDF

Product Detail

Product Tags

18 Inch PP Heavy Duty High Chrome Minerals Processing Centrifugal Slurry Pumps for Tailings Management

1.CNSME® SHPP/450U Slurry Pump Product Introduction:

CNSME® SHPP/450U (20/18-PP) slurry pump is the most comprehensive centrifugal slurry pump in the world for mining, chemical and industrial applications. The SHPP/450U (20/18-PP)slurry pump is designed for overweight applications, such as mill discharge, craft factories and tailings, high -pressure pipelines, and other professional applications.

CNSME® SHPP/450U (20/18-PP) Slurry Pump Design Features:

The heavy structure has a transparent bolt design, which is easy to maintain and the minimum stop time.

The tube of the extended iron complete lining can provide durability, strength, safety, and long -term service life.

Large diameter, slow turning, high -efficiency impeller, aiming to achieve the maximum wear life and low operating costs.

Large and open internal channels aim to reduce internal speed, maximize wear life and reduce operating costs.

2. CNSME® SHPP/450U Slurry Pump Product Parameters:

Speficications
Model	Max. Power (kw)	Materials		Clear Water Performance					Impeller Vane No.
Model	Max. Power (kw)	Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Impeller Vane No.
1.5/1B-A H	15	M	M	12.6~28.8	6~68	1200~3800	40	2~4	5
1.5/1B-A H	15	RU	RU	10.8~25.2	7~52	1400~3400	35	2~4	3
2/1.5B-A H	15	M	M	32.4~72	6~58	1200~3200	45	3.5~8	5
2/1.5B-A H	15	RU	RU	25.2~54	5.5~41	1000~2600	50	2.5~5	5
3/2C-A H	30	M	M	39.6~86.4	12~64	1300~2700	55	4~6	5
3/2C-A H	30	RU	RU	36~75.6	13~39	1300~2100	60	2~4	5
4/3C-A H	30	M	M	86.4~198	9~52	1000~2200	71	4~6	5
4/3C-A H	30	RU	RU	79.2~180	5~34.5	800~1800	59	3~5	5
4/3D-A H	60	M	M	97.2~198	9~53	1000~2200	71	4~6	5
4/3D-A H	60	RU	RU	79.2~180	5~34.5	800~1800	59	3~5	5
6/4D-A H	60	M	M	162~360	12~56	800~1550	65	5~8	5
6/4D-A H	60	RU	RU	144~324	12~45	800~1350	65	3~5	5
6/4E-A H	120	M	M	162~360	12~56	800~1550	65	5~8	5
6/4E-A H	120	RU	RU	144~324	12~45	800~1350	65	3~5	5
8/6E-A H	120	M	M	360~828	10~61	500~1140	72	2~9	5
8/6E-A H	120	RU	RU	324~720	7~49	400~1000	65	5~10	5
8/6R-A H	300	M	M	360~828	10~61	500~1140	72	2~9	5
8/6R-A H	300	RU	RU	324~720	7~49	400~1000	65	5~10	5
10/8-A H	560	M	M	612~1368	11~61	400~850	71	4~10	5
10/8-A H	560	RU	RU	540~1188	12~50	400~750	75	4~12	5
10/8E-M	120	M	M	666~1440	14~60	600~1100	73	4~10	5
10/8E-M	120	RU	RU	540~1188	10~42	500~900	79	5~9	5
12/10-A H	560	M	M	936~1980	7~68	300~800	82	6	5
12/10-A H	560	RU	RU	720~1620	7~45	300~650	80	2.5~7.5	5
14/12-A H	560	M	M	1260~2772	13~63	300~600	77	3~10	5
14/12-A H	560	RU	RU	1152~2520	13~44	300~500	79	3~8	5
16/14-A H	560	M	M	1368~3060	11~63	250~550	79	4~10	5
16/14-A H	1200	M	M	1368~3060	11~63	250~550	79	4~10	5
18/16-A H	1200	M	M	2160~5040	8~66	200~500	80	4.5~9	5
20/18-A HPP	1200	M	M	2520~5400	13~57	200~400	85	5~10	4

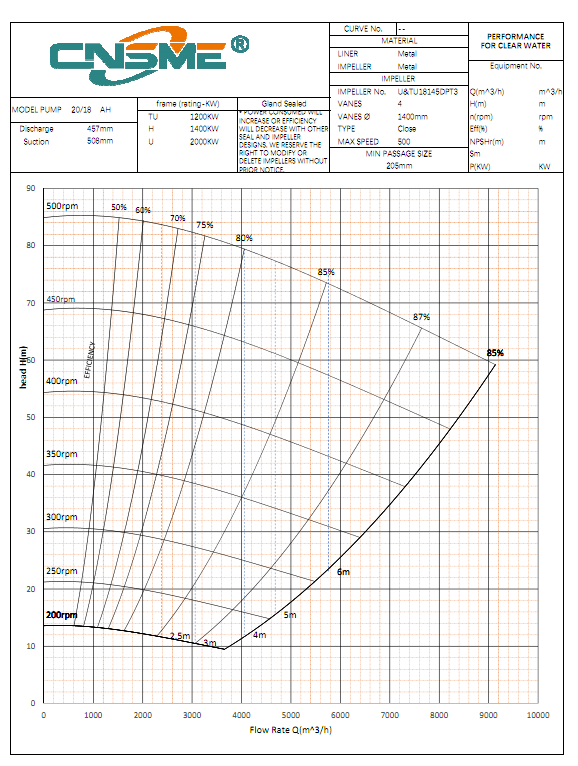

3.CNSME® SHPP/450U Slurry Pump Performance curve:

4.CNSMESHPP/450U Slurry Pump Dimension Drawing:

.CNSME® SHPP/450U Slurry Pump On-Site Applications:

Mill Discharge

Cyclone Feed

Minerals Processing

Tailings Management

Mine Dewatering

Iron & Steel ·Cement

Concentrator Process

Sand & Gravel Mineral Sands

Chemical,Slurry,Sugar and Raw Foodstuffs

Mining Industry (Coal, Diamond, Aluminium, Gold,Platinum, Phosphate, Copper, Zinc, Iron Ore)

Note:

* CNSME® is a registered trademark and does not represent or is not in any way affiliated with W arman® of Minerals Group. All names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of W arman Pumps.

* CNSME® SHPP/450U slurry pumps and spares are only interchangeable with W arman® 20/18- PP slurry pumps and spares.
