EAM029 A05 Expeller Ring
EAM029 A05 Expeller Ring

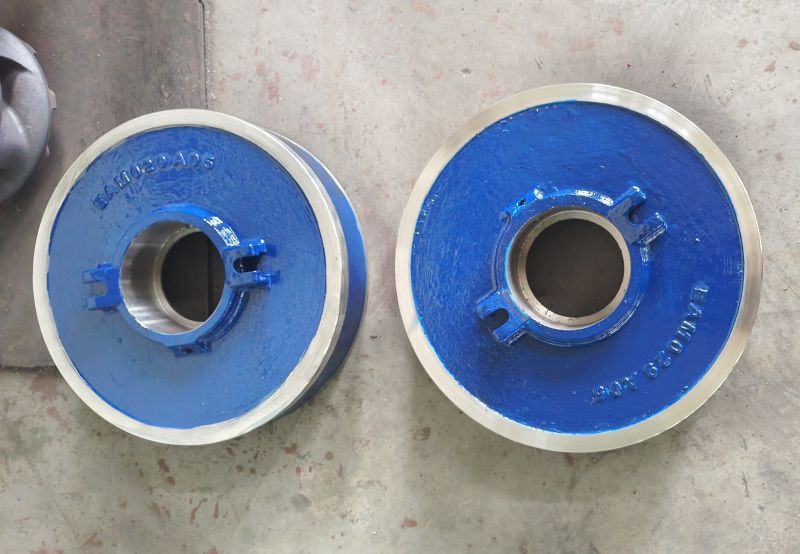

CNSME® Slurry Pump Expeller Ring EAM029A05 is used for 8/6 AH Slurry Pumps, The expeller ring is together work with expeller for the slurry pumps. They can not only help seal the pump, but also reduce the centrifugal force. The design and material of expeller is significant to its service life, Tobee offers expeller in cast iron, high chrome and rubber materials for options.
Slurry Pump High Seal Parts mainly included: expeller, expeller ring, frame plate liner insert and stuffing box,there will be HS1 after the basic part numbers to represent Hi-seal pump parts, and compare with standard pump parts, the HS1 slurry pump parts are more suitable for sealing at high intake pressures as the large diameter slurry pump expeller.
The 8/6 AH Slurry Pump HS1 spares are using for handing strong abrasive, high density slurry and low density, high head slurry in the metallurgical, mining, coal, power, building material and other industry departments etc
|
Slurry Pump Expeller Ring |
AH Slurry Pumps |
Slurry Pump Materials |
|
B029 |
1.5/1B-AH, 2/1.5B-AH |
HT250, High chrome, Rubber |
|
C029 |
3/2C-AH |
HT250, High chrome, Rubber |
|
D029 |
4/3C-AH, 4/3D-AH |
HT250, High chrome, Rubber |
|
DAM029 |
6/4D-AH |
HT250, High chrome, Rubber |
|
E029 |
6/4E-AH |
HT250, High chrome, Rubber |
|
EAM029 |
8/6E-AH, 8/6R-AH |
HT250, High chrome, Rubber |
|
F029 |
8/6F-AH |
HT250, High chrome, Rubber |
|
FAM029 |
10/8F-AH, 12/10F-AH, 14/12F-AH |
HT250, High chrome, Rubber |
|
SH029 |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
HT250, High chrome, Rubber |
|
TH029 |
16/14TU-AH |
HT250, High chrome, Rubber |
|
Slurry Pump Expeller Ring |
HH Slurry Pumps |
Slurry Pump Materials |
|
CH029 |
1.5/1C-HH |
HT250, High chrome, Rubber |
|
DAM029 |
3/2D-HH |
HT250, High chrome, Rubber |
|
EAM029 |
4/3E-HH |
HT250, High chrome, Rubber |
|
FH029 |
6/4F-HH |
HT250, High chrome, Rubber |
|
Slurry Pump Expeller Ring |
M Slurry Pumps |
Slurry Pump Materials |
|
EAM029 |
10/8E-M |
HT250, High chrome, Rubber |
|
FAM029 |
10/8F-M |
HT250, High chrome, Rubber |
|
Slurry Pump Expeller Ring |
L Slurry Pumps |
Slurry Pump Materials |
|
ASC029 |
20A-L |
HT250, High chrome, Rubber |
|
BSC029 |
50B-L |
HT250, High chrome, Rubber |
|
CSC029 |
75C-L |
HT250, High chrome, Rubber |
|
DSC029 |
100D-L |
HT250, High chrome, Rubber |
|
ESC6029 |
150E-L |
HT250, High chrome, Rubber |
|
SL30029 |
300S-L |
HT250, High chrome, Rubber |
|
Gravel Pump Expeller Ring |
G(H) Gravel Pumps |
Gravel Pump Materials |
|
DAM029 |
6/4D-G |
HT250, High chrome, Rubber |
|
E029 |
8/6E-G |
HT250, High chrome, Rubber |
|
F029 |
10/8F-G |
HT250, High chrome, Rubber |
|
GG029 |
12/10G-G, 14/12G-G, 12/10G-GH |
HT250, High chrome, Rubber |
|
HG029 |
14/12TU-G,16/14TU-G,16/14TU-GH |
HT250, High chrome, Rubber |
